3.4 Flood / Spot Lights
Polypropylene Garden Spot, Swivel Arm		Polypropylene Garden Spot, Swivel Arm

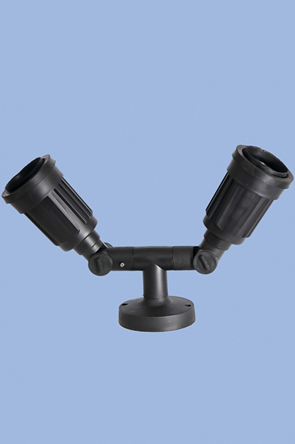

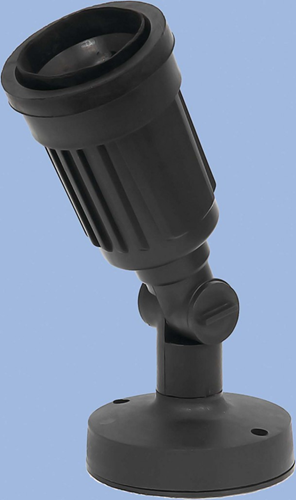

	Ref : 3.4.1 GS004/1 BLACK Lip Seal for Bulb 220V – 240V IP44 - 1 x ES Par 38 Bulb Width: 76mm Height: 220mm Base: 95mm		Ref : 3.4.2 GS005/2 BLACK Lip Seal for Bulb 220V – 240V IP44 - 2 x ES Par 38 Bulbs Width: 210mm Height: 220mm Base: 95mm
FS121		FS120
	Ref : 3.4.3 Fitting Code FS121 Fitting Colour Silver P Rating 65 Lens/Shade Colour Clear Lens/Shade Material Glass Box Qty 6 per box Fitting Material Aluminium Height 235mm Width 287mm Depth 170mm Additional information 120 Degree Beam Angle		Ref : 3.4.4 Fitting Code FS120 Fitting Colour Silver IP Rating 65 Lens/Shade Colour Clear Box Qty 10 per box Fitting Material Aluminium Height 140mm Width 180mm Depth 127mm Additional information 120 Degree Beam Angle


FS119		FS70B
	Ref : 3.4.5 Fitting Code FS119 Fitting Colour Silver IP Rating 65 Lens/Shade Material Glass Box Qty 20 per box Fitting Material Aluminium Height 86mm Width 114mm Depth 109mm Additional information Beam Angle 120 Degrees		Ref : 3.4.6 Fitting Code FS70B Fitting Colour Black IP Rating 55 Lens/Shade Colour Clear Lens/Shade Material Glass Class 1 Box Qty 4 per box Fitting Material Aluminium Height 255mm Width 165mm Depth 180mm Operating Functions All Day, Nighttime Mode Max Lamp 1 Included 1 x R7S 120W QI Premium J78 Halogen

FS71B		FS4
	Ref : 3.4.7 Fitting Code FS71B Fitting Colour Black IP Rating 55 Class 1 Box Qty 4 per box Height 255mm Width 160mm Depth 190mm Additional information Including Lamps: 8 x 1W LED 230V		Ref : 3.4.8 Fitting Code FS4 Fitting Colour Yellow - Black IP Rating 44 Lens/Shade Colour Clear Lens/Shade Material Glass Class 1 Box Qty 1 per box Fitting Material Steel/aluminium Height 1890mm Width 710mm Depth 580mm Spares Spare Glass: X020 Max Lamp 1 Included 2 x R7S 400W QI Premium J118 Halogen

FS3		FS35
	Ref : 3.4.9 Fitting Code FS3 Fitting Colour Yellow - Black IP Rating 44 Lens/Shade Colour Clear Lens/Shade Material Glass Class 1 Box Qty 1 per box Fitting Material Steel/aluminium Height 1890mm Width 710mm Depth 580mm Spares Spare Glass: X020 Max Lamp 1 Included 1 x R7S 400W QI Premium J118 Halogen		Ref : 3.4.10 Fitting Code FS35 Fitting Colour Black IP Rating 54 Lens/Shade Colour Clear Lens/Shade Material Polycarbonate Class 1 Box Qty 8 per box Fitting Material Pvc Height 275mm Width 250mm Depth 100mm Spares Spare Glass: X690 Max Lamp 1 Not Included 2 x E27 20W 3U CFL (Cool White)

FS89		FS96
	Ref : 3.4.11 Fitting Code FS89 Fitting Colour Black 3.4.11 IP Rating 44 Lens/Shade Colour Clear Lens/Shade Material Polycarbonate Class 1 Box Qty 8 per box Fitting Material Pvc Height 240mm Width 260mm Depth 100mm Max Lamp 1 Included 1 x G24d-3 26W PL CFL (Cool White)		Ref : 3.4.12 Fitting Code FS96 Fitting Colour Black IP Rating 55 3.4.12 Lens/Shade Colour Clear Lens/Shade Material Glass Class 1 Box Qty 8 per box Fitting Material Die Cast Aluminium Height 190mm Width 233mm Depth 125mm Max Lamp 1 Not Included 2 x G24d-2 18W PL CFL (Cool White)

FS5B		FS32
	Ref : 3.4.13 Fitting Code FS5B Fitting Colour Black Class 2 Box Qty 36 per box Fitting Material Pvc Width 85mm epth 110mm Operating functions time, sensitivity		Ref : 3.4.14 Fitting Code FS32 Fitting Colour Black IP Rating 43 3.4.14 Class 2 Box Qty 12 per box Fitting Material Pvc Height 110mm Width 180mm Depth 180mm Operating Functions 130 Additional information PIR: Motion, Time, Day/night. 12M and 130° Range Max Lamp 1 Not Included 2 x E27 150W PAR38 Incandescent

Induction Flood Light
	Ref : 3.4.15 Induction Flood Light Available In 40w 80w And 120w 90 lumens per watt 100 000 burning hours 5 year guarantee
