4.2 Extractor
|
Light Rectangular Ceiling Bathroom Heater
|
|

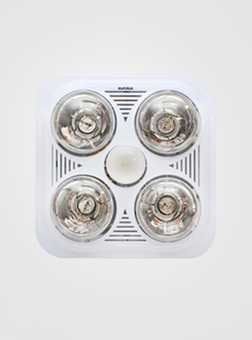

Light Square Ceiling Bathroom Heater
|
|
 |
- Ref : 4.2.1
- Fitting Code C85
- Fitting Colour White
- IP Rating 20
- Lens/Shade Material Glass
- Class 1
- Box Qty 6 per box
- Fitting Material Plastic
- Height 235mm
- Width 400mm
- Depth 40mm
- Barcode 6.00733E+12
- Additional information 3 in 1 Bathroom Heater / Light/ Extractor Fan
|
 |
- Ref : 4.2.2
- Fitting Code C86W
- Fitting Colour White
- IP Rating 20
- Lens/Shade Colour Opal
- Lens/Shade Material Glass
- Class 1
- Box Qty 4 per box
- Fitting Material Plastic
- Height 350mm
- Width 465mm
- Depth 60mm
- Barcode 6.00733E+12
- Additional information 3 in 1 Bathroom Heater / Light / Extractor Fan
|
| |
|
|
|
Extractor Fans with Pilot Light
|
|
Extractor Fan with Pilot Light
|
|
 |
- Ref : 4.2.3
- Fitting Code F43
- Fitting Colour White
- IP Rating 20
- Class 2
- Box Qty 12 per box
- Fitting Material Plastic
- Height 158mm
- Width 158mm
- Depth 80mm
- Cut-out 135
- Motor Power 15
- Barcode 6.00733E+12
- Additional information Air Movement: 100m³/hr
|
 |
- Ref : 4.2.4
- Fitting Code F44
- Fitting Colour White
- IP Rating 20
- Class 2
- Box Qty 12 per box
- Fitting Material Plastic
- Height 172mm
- Width 172mm
- Depth 85mm
- Cut-out 149
- Motor Power 25
- Barcode 6.00733E+12
- Additional information Air Movement: 162m³ /hr
|
| |
|
|
|
Extractor Fan with Pilot Light
|
|

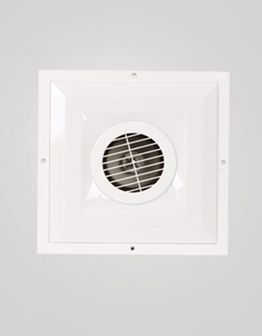

Square Extractor Fan With Light
|
|
 |
- Ref : 4.2.5
- Fitting Code F45
- Fitting Colour White
- IP Rating 20
- Class 2
- Box Qty 12 per box
- Fitting Material Plastic
- Height 208mm
- Width 208mm
- Depth 87mm
- Cut-out 184
- Motor Power 25
- Barcode 6.00733E+12
- Additional information Air Movement: 210m³/hr
|
 |
- Ref : 4.2.6
- Fitting Code F32
- Fitting Colour White
- IP Rating 20
- Lens/Shade Colour Opal
- Lens/Shade Material Polycarbonate
- Class 1
- Box Qty 1 per box
- Fitting Material Plastic
- Height 290mm
- Width 290mm
- Depth 210mm
- Cut-out 250
- Motor Power 20
- Air Delivery 150
- Barcode 6.00733E+12
- Spares Spare Lamp - G616
- Max Lamp 1 Included 1 x 22W T8 Circline Fluorescent (Cool White) 4-Pin
|
| |
|
|
|

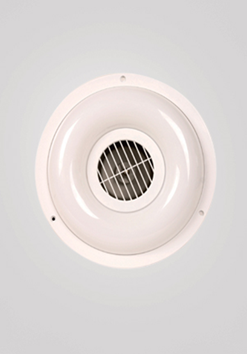

Round Extractor Fan With Light
|
|
Round Extrator Fan
|
|
 |
- Ref : 4.2.7
- Fitting Code F33
- Fitting Colour White
- IP Rating 20
- Lens/Shade Colour Opal
- Lens/Shade Material Polycarbonate
- Class 1
- Box Qty 1 per box
- Fitting Material Plastic
- Depth 210mm
- Diameter 290mm
- Cut-out 250
- Motor Power 20
- Air Delivery 150
- Barcode 6.00733E+12
- Spares Spare Lamp - G616
- Max Lamp 1 Included 1 x 22W T8 Circline Fluorescent (Cool White) 4-Pin
|
 |
- Ref : 4.2.8
- Fitting Code F30W
- Fitting Colour White
- IP Rating 20
- Class 2
- Box Qty 6 per box
- Fitting Material Plastic
- Depth 130mm
- Diameter 350mm
- Cut-out 300
- Motor Power 40
- Barcode 6.00733E+12
|
| |
|
|
|
Round Extractor Fan With Light
|
|
|
|
 |
- Ref : 4.2.9
- Fitting Code F31
- Fitting Colour White
- IP Rating 30
- Lens/Shade Colour Opal
- Lens/Shade Material Polycarbonate
- Class 1
- Box Qty 1 per box
- Fitting Material Plastic
- Depth 140mm
- Diameter 265mm
- Cut-out 228
- Motor Power 15
- Air Delivery 100
- Barcode 6.00733E+12
- Spares Spare Lamp - G616
- Max Lamp 1 Included 1 x 22W T8 Circline Fluorescent (Cool White) 4-Pin
|
|
|
| |
|
|
|
