2.3.1 Recessed lighting
|
Straight Downlighter
|
|
Tilt Downlighter
|
|
 |
- Ref : 2.3.1.1
- DS64
- Cut Out : 64mm
- Avaliable colours: White, Satin chrome, Brushed brass, Shinning gold,Chrome, Gun metal
|
 |
- Ref : 2.3.1.2
- DT75
- Cut Out : 76mm
- Avaliable colours: White, Satin chrome, Brushed brass, Shinning gold,Chrome, Gun metal
|
| |
|
|
|
Tilt
|
|
Tilt Oval
|
|
 |
- Ref : 2.3.1.3
- DL011
- - 12V / 50W
- Cut Out: 67mm
- Diameter: 98mm
- Colours Available: Satin Chrome, White
|
 |
- Ref : 2.3.1.4
- DL012
- - 12V / 50W
- Straight Bevelled Edge Cut Out: 60mm
- Diameter: 82mm
- Colours Available: Satin Chrome
|
| |
|
|
|
Straight Bevelled Edge
|
|
Tilt Bevelled Edge
|
|
 |
- Ref : 2.3.1.5
- DL020
- - 12V / 50W
- Cut Out: 60mm
- Diameter: 82mm
- Colours Available: Satin Chrome
|
 |
- Ref : 2.3.1.6
- DL021
- - 12V / 50W
- Cut Out: 72mm
- Diameter: 90mm
- Colours Available: Satin Chrome
|
| |
|
|
|
Straight White Glass
|
|
Straight Clear / Frosted Glass
|
|
 |
- Ref : 2.3.1.7
- DL022
- - 220V / 50W
- Cut Out: 70mm
- Diameter: 97mm
- Colours Available: Satin Chrome
|
 |
- Ref : 2.3.1.8
- DL024
- - 12V / 50W
- Straight Clear / Frosted Glass
- Cut Out: 67mm
- Diameter: 73mm
- Diameter of Glass: 85mm
- Colours Available: Satin Chrome
|
| |
|
|
|
Straight Clear / Frosted Glass
|
|
Straight Clear / Frosted Glass
|
|
 |
- Ref : 2.3.1.9
- DL024
- - 12V / 50W
- Cut Out: 60mm
- Diameter: 73mm
- Glass: 85mm
- Colours Available: Satin Chrome
|
 |
- Ref : 2.3.1.10
- DL026
- - 12V / 50W
- Cut Out: 60mm
- Diameter: 78mm
- Glass: 95mm
- Colours Available: Satin Chrome
|
| |
|
|
|
Straight
|
|
Tilt
|
|
 |
- Ref : 2.3.1.11
- DL027
- - 12V / 50W
- Cut Out: 60mm
- Diameter: 78mm
- Glass: 95mm
- Colours Available: Gun Metal, Satin Chrome, White
|
 |
- Ref : 2.3.1.12
- DL028
- - 12V / 50W
- Cut Out: 63mm
- Diameter: 74mm
- Colours Available: Gun Metal, Satin Chrome, White
|
| |
|
|
|
Tilt
|
|
Straight, Recessed, Full Reflector
|
|
 |
- Ref : 2.3.1.13
- DL038
- - 12V / 50W
- Cut Out: 73mm
- Diameter: 82mm
- Colours Available: Gun Metal, Satin Chrome, White
|
 |
- Ref : 2.3.1.14
- DL040 WHITE
- - 1 x 26W ES CFL
- Cut Out: 150mm
- Diameter: 175mm
- Depth: 93mm
|
230V LED Down Lighter
|
|
Straight, Recessed, Full Reflector
|
|
 |
- Ref : 2.3.1.15
- DL043
- - 147 x LED Total 8.8W (Included)
- Cut Out: 170mm
- Diameter: 195mm
- Depth: 75mm
- Colours Available: Satin Chrome, White
|
 |
- Ref : 2.3.1.16
- DL045
- Straight Reccessed, full reflector
- Bevel Edge Opaque Splash glass
- Cut Out: 100mm
- Diameter: 125mm
- Colours Available: White
|
| |
|
|
|
Straight, Recessed, Full Reflector
|
|
Pressed Steel, Straight
|
|
 |

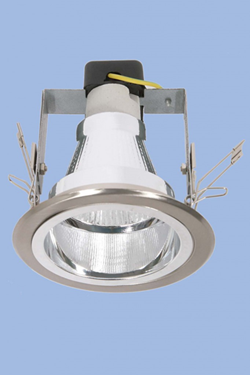

- Ref : 2.3.1.17
- DL060 SATIN CHROME
- - 220V / 60W ES
- Cut Out: 108mm
- Diameter: 120mm
- Colours Available: Satin Chrome, White
|
 |
- Ref : 2.3.1.18
- DL061
- 220V – 240V / 50W
- Adjustable Bracket – fits any GU10 Lamp
- Cut Out: 85mm
- Diameter: 110mm
- Colours Available: Satin Chrome, White
|
| |
|
|
|
Straight Recessed, Full Reflector, Bevelled Edge, Opaque Splash Glass
|
|
Straight, Recessed, Full Reflector
|
|
 |
- Ref : 2.3.1.19
- DL065
- - 220V / 60W ES
- Cut Out: 130mm
- Diameter: 152mm
- Colours Available: Satin Chrome, White
|
 |

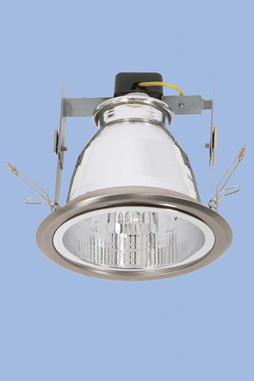

- Ref : 2.3.1.20
- DL100 SATIN CHROME
- - 220V / 100W ES
- Cut Out: 120mm
- Diameter: 140mm
- Colours Available: Satin Chrome, White
|
| |
|
|
|
Tilt Bayonet Lock
|
|
Straight Bayonet Lock
|
|
 |
- Ref : 2.3.1.21
- DL233
- - 12V / 50W
- Cut Out: 78mm
- Diameter: 95mm
- Colours Available: Satin Chrome, White
|
 |
- Ref : 2.3.1.22
- DL244
- - 12V / 50W
- Cut Out: 68mm
- Diameter: 80mm
- Colours Available: Satin Chrome, White
|
| |
|
|
|
Tilt
|
|
Tilt
|
|
 |
- Ref : 2.3.1.23
- Tilt
- DL251 ALUMINIUM
- - 12V / 50W
- Cut Out: 70mm
- Diameter: 83mm
|
 |
- Ref : 2.3.1.24
- Tilt
- DL252 ALUMINIUM
- - 12V / 50W
- Cut Out: 70mm
- Diameter: 83mm
|
|
|
|
|
| |
|
|
|
